Code: IP20 Batten

IP20 Batten

TB-V2 Series



• PC diffuser, Steel base, Metal gear tray
• Easy installation and easy to open
• CCT switch & Wattage switch
• Emergency Pack and Microwave Sensor quickly plug in

Contact now Got a question?

TECHNICAL DETAILS


PRODUCT CODE FINISH WATTAGE CCT IP BEAM ANGLE LM LM/W
SNT-TBV2LED20-4F-CCT3 White 20/18/15/11w 3000/4000/6500K IP20 120° 2400/2160/1800/1320
2800/2520/2100/1540
120/140 Datasheet

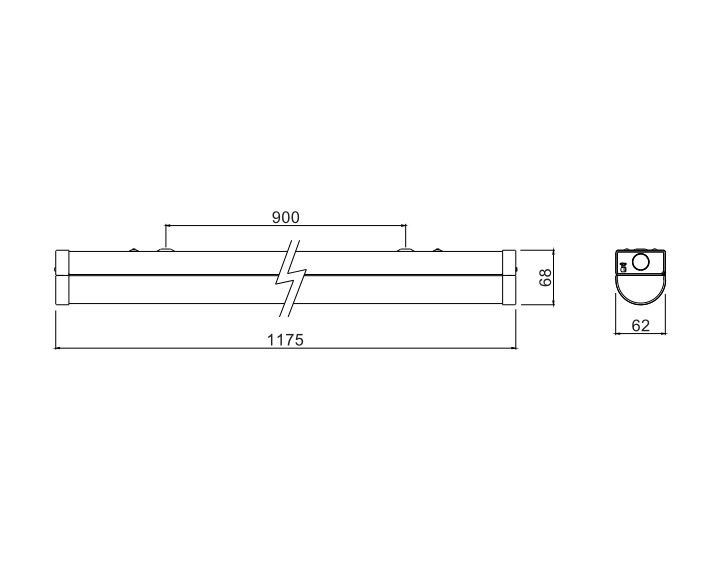

SNT-TBV2LED40-4F-CCT3 White 40/34/28/22w 3000/4000/6500K IP20 120° 4800/4080/3360/2640
5600/4760/3920/3080
120/140 Datasheet
SNT-TBV2LED30-5F-CCT3 White 30/26/23/16w 3000/4000/6500K IP20 120° 3600/3120/2760/1920
4200/3640/3220/2240
120/140 Datasheet

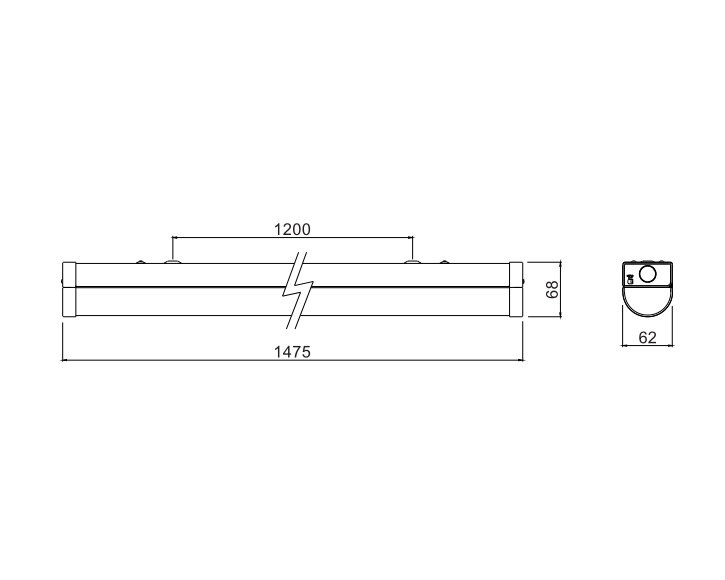

SNT-TBV2LED60-5F-CCT3 White 60/52/43/34w 3000/4000/6500K IP20 120° 7200/6240/5160/4080
8400/7280/6020/4760
120/140 Datasheet
SNT-TBV2LED40-6F-CCT3 White 40/34/28/22w 3000/4000/6500K IP20 120° 4800/4080/3360/2640
5600/4760/3920/3080
120/140 Datasheet
SNT-TBV2LED80-6F-CCT3 White 80/70/60/50w 3000/4000/6500K IP20 120° 9600/8400/7200/6000
11200/9800/8400/7000
120/140 Datasheet


Functional options


PRODUCT CODE FUNCTION NAME DESCRIPTION

Mosentek-MS007 Sensor Linear configuration antenna (only 11mm width), suitable for build in linear lighting fixture
3-step dimming control
Datasheet

Mosentek-MD005 Sensor Ultra thin configuration for light fixture build in.
Compact size flat antenna (11*61mm W*L) for easy installation.
Flat antenna emiting design no sensing blind zone.
Back side terminal block for fast wiring
Datasheet

APR03.05(α Pro Standard 230V) Emergency Pack 3 hour emergency conversion pack,manual test
Test Button for a quick functional test
Green charging status LED
Datasheet

APR03.05(α Pro Selftest 230V) Emergency Pack 3 hour emergency conversion pack,self test
Bi-coloured status LED
Weekly function test and yearly duration test
Datasheet
